DETAILS
This momentary push button helps eliminate having to stock dozens of push buttons, and wasting precious time and money tracking down just the right button for a customer. Button is ready to be assembled out of box and is easily installed within minutes on site. Universal Button offers over 300 combinations for the price of a standard one configuration button. The momentary push button has a faceplate that is constructed of cast aluminum metal, allowing it to take tough knocks in stride, and is slightly oversized to cover old plate installation marks.
Key Features
DESIGN
DESIGN
- Buttons designed to provide just what a customer wants all in one package.
CONSTRUCTION
CONSTRUCTION
- Faceplate constructed of cast aluminum.
- UL/cUL Listed Fire S7255, UL 2017, UL 294 (models ending in LTUL)
- CSA-C22.2 No. 205
INSTALLATION
INSTALLATION
- Temperature: -40° to 185° F (-40° to 85°C).
- Mounts to standard electrical handi box.
- Single gang plate slightly oversized to cover old plate installation marks.
ELECTRONICS
ELECTRONICS
- Illuminated 12/24 volt LED button and illuminated message light kit.
- UB-1 has two sets of independent Form "C" contacts.
- UB-1PN mechanical adjustable timer opens or closes a circuit and has a timed delay before reset.
- UB-1TF applied NoTouch® technology. To exit, the person simply waves their hand in front of the button
OPTIONS
OPTIONS

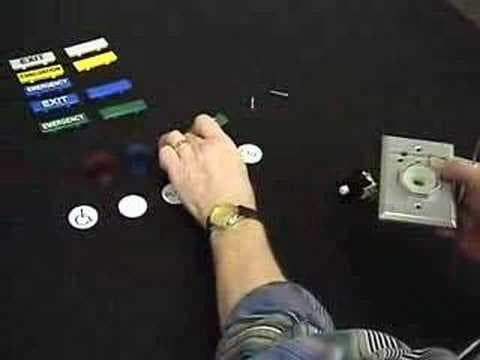

- Five inserts for the button included - EXIT, PUSH, PUSH TO EXIT, handicap symbol and blank.
- Three lens covers included - red, green and blue.
- Ten color coated message inserts in green, blue, yellow and white.
- Plate messages inscribed with - EXIT, EMERGENCY and translucent blanks (allowing for custom labels).
OTHER FEATURES
OTHER FEATURES
- One package, over 300 combinations.
- One year guarantee on electro mechanical and electronic components.
- See specification sheet for complete button details.
MEDIA
Product Models
UB-1
Universal ButtonColors:
Dimensions:4.83 in H x 3.22 in W x 0.867 in D
UB-1-ES
Universal Button - SpanishColors:
Dimensions:4.83 in H x 3.22 in W x 0.867 in D
UB-1-LTUL
Universal Button with Latching TimerColors:
UB-1PN
Universal Pneumatic ButtonColors:
Dimensions:4.83 in H x 3.22 in W x 0.91 in D
UB-2
2" Universal ButtonColors:
Dimensions:4.83 in H x 3.22 in W x 1.47 in D
UB-2-ES
2" Universal Button - SpanishColors:
UB-2-LTUL
2" Universal Button with Latching TimerColors:
UB-2PN
2" Universal Pneumatic ButtonColors:
Dimensions:4.83 in H x 3.22 in W x 0.91 in D
